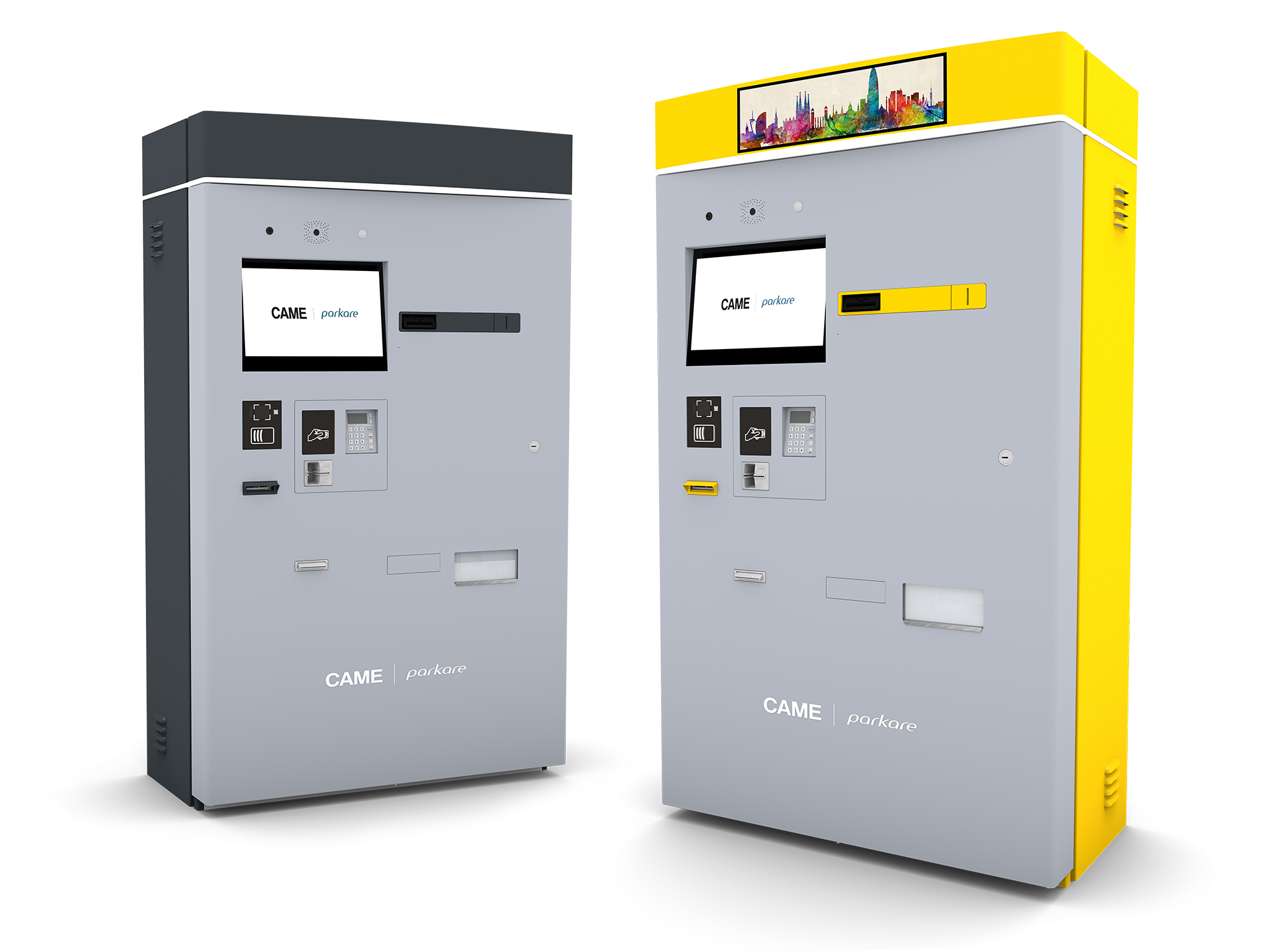

PKE Automatic Pay Station

You are here

PKE Automatic Pay Station

Built to the highest standards and offering excellent security, the PKE pay station is not just a payment terminal but a complete multifunctional station, with a compact design and technology, a point of information and help and the option to include advertising. Designed to improve the profitability of the car park, it is low maintenance and provides high availability while unattended.



Features

  • 15.6" LVDS Colour TFT touch screen display in panoramic format.
  • 4 language options (defined by the client).
  • IP intercom for communication with the control room.
  • Motion sensor to reduce energy consumption.
  • Embedded PC based on architecture x86 and support SSD for data storage.
  • Barcode reader 1D/QR with capacity to read codes on tickets, printed paper and mobile devices.
  • Thermal receipt printer.
  • Electronically regulated internal ventilation system.
  • Coins module with change giving. Accepts up to 16 denominations of different coins and automatic return of 4 different values.
  • 4 self-charging coin hoppers, two with capacity of 1500 coins and two with capacity of 750 coins.
  • 5.5 litres security coin box.
  • Cabinet constructed from 2mm AP02 steel with antioxidant treatment and oven dried polyester powder paint.
  • AGA 582 lockable door brass cylinder with two anchor points with rod of 10 AISI 304 diameter and AGA-12 nickel-plated brass security key.
  • Security lock with 3 locking points.
  • Micro sensors for automatic detection: door opening, lock, coin box removal, hoppers removal and note box removal.
  • Operating display protected by 4mm polycarbonate.
  • Exterior and interior lighting system.
  • Available as standard in signal yellow and white aluminium (RAL 1003 and 9006) or dark grey and white aluminium (RAL 9006).



Optional components

  • Facial camera, integrated with the intercom.
  • LED lighting indicating status of the terminal.
  • Proximity card reader.
  • Thermal printer to issue lost ticket and other barcode products in 1D/QR.
  • PGCT ticket transport, allowing reading and encoding of tickets in magnetic stripe format with integral laser scanner to read barcodes and the ability to retain tickets.
  • Receipt printer with paper thickness of 67 gsm.
  • Uninterruptible Power Supply (UPS).
  • Interior heating and ventilation system.
  • EMV reader for credit card chip & pin and proximity payments (NFC).
  • Note reader, with capacity of reading 100 different notes in 4 ways with escrow function.
  • Accept notes with change giving systems. Multiescrow available and capacity of recycling of 2 denominations, Up to 60 notes in each deposit.
  • 2 extra hoppers for manual self-charging coins, with capacity of 750 coins.
  • 1 multi-valued hopper for self-charging coin.
  • Door open alarm.
  • Alternative colours available upon request.



Specifications

  • Power: 100-120 / 220-240 V AC. 50-60 Hz
  • Consumption: 200 w (450 w with heater)
  • Temperature using heater: -20ºC to +50 ºC
  • Temperature with no heater: -0ºC to +50 ºC
  • Dimensions (mm): 1690 x 1000 x 532 (HxWxD)

PRICES ARE AVAILABLE UPON REQUEST: every project has to be analysed together with our sales team. Kindly let us have your project details so we can provide you with a specific quotation.
